Ny Małek MAŁEK M-2 MAX 4 blandepumpe

M-2 MAX 400V unit
The M-2 MAX plastering unit is a lightweight, mobile unit that can be dismantled and easily transported. It has 4 wheels for easy movement. The simultaneous use of 2 wheels with brakes improves its safety and stable operation during use.

The M-2 MAX plastering machine is designed for applying ready-made plaster mixes and building mortars. The maximum grain size that can be fed by the machine is 4 mm, depending on the pump used, designed for feeding and mechanical mixing.

The M-2 MAX machine is suitable for plaster, gypsum, lime, and cement mortars, as well as thin-layer plasters and finishing coats. It can be filled with both dry and wet materials.

The M-2 MAX aggregate can be connected to a blower cover for transporting dry material from the silo to the aggregate. The M-2 MAX aggregate has a dry material cut-off from the wet chamber, which facilitates cleaning.

The M-2 MAX aggregate has a removable electrical switchboard with controls.

Application of the M-2 MAX 400V unit
Gypsum, lime, and cement plasters
Gypsum-lime plasters
Cement
Thin-layer gypsum plasters
Lime plasters
Cement-lime plasters
Thin-layer plasters
Adhesive plasters
Renovation and adhesive mortars
Self-leveling mortars
Mortars for lightweight and cellular concrete
Anhydrite screeds
Filling mortars
Masonry mortars

Technical specifications:
Feed pump motor (NORD feed pump): 6.5 kW, 1450 rpm
Pump element: D6-3 (stator and rotor) 21 l/min, max. grain size 3 mm
Air compressor: 0.9 kW, 250 l/min, max. pressure 5.5 bar
Power unit: 8.5 kW, 400 V, 50 Hz
Feeding distance: 40 m
Delivery height: 15 m
Operating pressure: 40 bar
Mixing chamber capacity: 56 liters
Weight: 180 kg
Dimensions L x W x H 120/65/131 cm
Filling chamber height from the ground 112 cm


Technical specifications of additional equipment

PKm 60 water pump, power supply 230 V, 0.37 kW
40 L/min lift height 40 m
suction height 8 m
Weight 6 kg


Basic equipment

Pump unit stator, rotor D6-3
M-2 MAX mixer
Shaft cleaning unit, cleaner
Air compressor 0.9 kW 250L/min 5.5 bar
Cleaning ball for working hose, diameter 30
Working hose DN 25 40 bar 10 m, camock connectors
Reinforced water hose 3/4" 25 m, pressure fitting, fitting with connector
Reinforced air hose 3/8" 12.5 m 2x geka fittings with connector
Power cord 5x2.5 mm2 20 m 5x32A plug 5x32A socket
75 cm spray lance with 12 mm nozzle
Water reducer wrench
DN25 pump yoke, male camlock connector, type D
Spray gun for generating water mist
Additional equipment for the unit
Working pressure gauge with separator for DN25 60 bar plaster
Working pressure gauge with separator for screeds DN35 60 bar
PKM 60 water pump with power supply unit for flushing and refilling the system
Nozzles for spraying various types of mixtures and plaster compounds:
Red conical polyurethane nozzle, diameter 10, 12, 14 mm
Red polyurethane nozzle, diameter 10, 12, 14 mm
Black conical rubber nozzle, diameter 8, 10, 12, 14, 16, 18 mm
Black rubber nozzle, diameter 8, 10, 12, 14, 16, 18 mm
Pink rubber nozzle, diameter 8, 10, 12, 14, 16, 18 mm
Lance pipe – lengths: 25 cm, 75 cm, 100 cm, 125 cm, 150 cm
Pump yoke for DN35 type D nozzles
Pump yoke for DN35 type R nozzles
Pump yoke type R camlock male DN 25
Hose for DN35 nozzles, lengths 10, 15, 20 m
Rotomix type D DN 35/25
Rotomix type R DN 35/25
Control button with 12, 20, 30 m cable
Stator rotor key
Blow cover for material

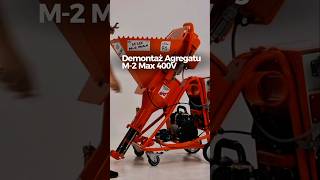

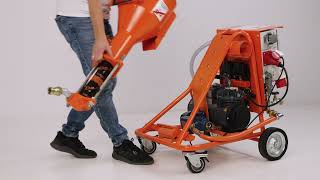

Main components that can be removed from the unit during transport

Compressor
Motor with base
Feed hopper
Mixing chamber
Electrical switchboard with water system
Water pump
